Oxygen measuring instruments
This instrument which can be used in a versatile manner are top class and cover the whole
range of oxygen measurement in heat treating and in laboratory.
Zirconium
oxide as measuring principle fulfils all demands which are expected of a modern
trace analyser.
Used in a mobile or stationary manner, the GSM-V6 is a product of up-to-date
technology.
Oxygen measurement in the percentage range to trace
measurement in the range of ppm and ppb can be achieved within a second without
disadvantages to the sensory installation.

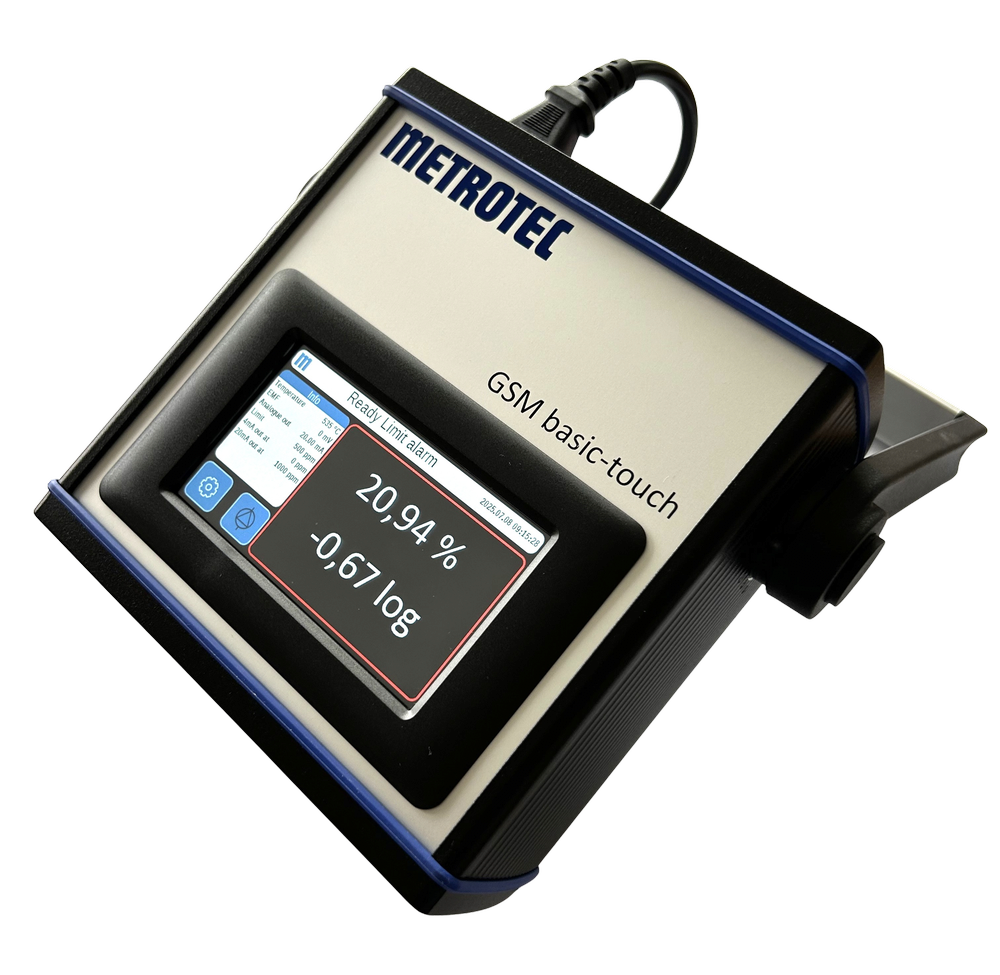

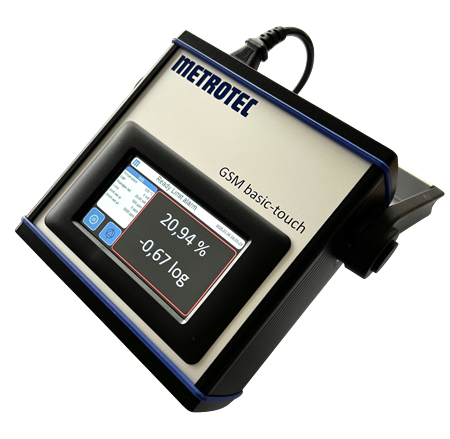

Oxygen meter GSM-touch
The hand-held Oxygen Meter GSM-touch is a state-of-the art measuring instrument controlled by a touch pad.
This oxygen meter is integrated in an elegant aluminium housing. The display's 24mm character height makes it very easy to read the measurements.
A graphical display with freely programable axes continually shows the current value and the selected history.
The measured values can be saved onto a flash drive through the oxygen meter‘s USB interface or sent on via Ethernet.
Parameterising outputs, alarms and histogram on the touch pad is easy and self-explanatory.
Specifications oxygen meter GSM-touch
|
Measuring principle |
Zirconium oxide |
|
Display |
- Oxygen in %, ppm, bar
|
|
Measuring range |
100 % to 10E-33 bar |
|
Sample gas pump |
integrated |
|
Power supply |
110 - 230 Volt, 50/60 Hz |
|
Dimensions, Weight |
ca. 315 x 210 x 75 mm plus carrying handle, ca 3.5 kg |
|
Analogue output 1 Analogue output 2 |
Linear, programable 0/4 - 20 mA Logarithmical or additional function, programable 0/4 - 20 mA |
|
Digital output 1 Digital output 2
|
Limit values, alarms (3 floating relays) |
GSM-touch Manual (PDF)Oxygen measuring and control instrument GSM-V6
This extremely versatile and portable instrument covers the entire range of oxygen measuring in heat treatments and in the laboratory.
Use of zirconium oxide as the measuring principle meets all the expectations placed on a modern trace analyser. The GSM-V6 is a leading-edge technological product, whether used as a mobile or an immobile device.
Consequently, the numerical an time-based graphical display of oxygen, lambda and dew-point will exactly represent process parameters.
Technical data GSM-V6
|
Display |
LCD, 64x128 pixel |
|
Representation |
- Oxygen in %, ppm, bar
|
|
Exit |
0/4-20 mA scalable
|
|
Dimensions |
About 160 x 260 x 260 mm plus handle, about 4 kg |
|
Power supply network |
230 Volt, 50/60 Hz |
|
Measuring range |
100% to 10E-33 bar oxygen |
|
Measuring principle |
Ziconium oxide |
|
Measuring gas transport |
Incorporated controllable gas pump |
| Measuring gas supply | 3mm Swagelok |
Oxygen measuring instrument GSM
This combinable oxygen measuring instrument GSM type installation measuring and control instrument visualizes signals of oxygen sensors by its LCD matrix display.
Thus the numerical and time-dependent graphical representation of oxygen, lambda, C-level and dew point depicts method parameters in an exact manner.
The incorporated control device and individually adjustable limiting values allow the control of oxidative method conditions in a reproducible way.
Technical data GSM
| Display | LCD, 64x128 pixel |
| Representation |
- Oxygen in %, ppm, bar |
| Exit |
0/4-20 mA scalable 2 relays without potential for control device or limiting value |
|
Dimensions |
96 x 96 x 180 mm |
| Power supply network | 115/230 volt, 50/60 Hz |
| Measuring range |
100% to 10E-33 bar oxygen |
|
Combinable with sensor |
|
Oxygen measuring and control device U15-Digital
The U15-DIGITAL series measuring module includes the following functions:
- Measures the oxygen partial pressure in connection with a separate series
A or C
sensor - Output of measured value 0 to 20 mA, switchable to 4 to 20 mA
- Generation of alarms
The module is parameterized after the installation, if necessary, and will operate permanently with these settings.
Technical Data U15-Digital
|
Measuring range |
100 % to 10-31 bar O2 |
|
Ambient temperature |
0 to 45 degrees Celsius |
|
Measuring accuracy |
+/- 0.3 mV of the sensor e.m.f.
|
|
Dimensions |
ca. 150 x 180 x 90 mm (HxWxD) |
|
Weight |
ca. 1.5 kg |
|
Supply voltage |
230 VAC, 24 VDC
|
|
Output |
Acc. to sensor type, ca. 100 VA max. |
|
1 (optionally 2) analog output(s) |
0/4 – 20 mA configurable, floating |
|
2 Relay outputs |
configurable for alarms, 1A, 24 V (ohmic) |
Supply modul Z15
Technical data Z15
Ambient temperature |
0 bis 45 degrees Celsius |
| Dimensions | Aluminium housing 120 x 120 mm, 110 mm height for screw assemblage
|
Space |
with fastening clip and plugs 200 x 260 mm |
Weight |
ca. 2 kg |
Power Supply |
230 V, 50 Hz |
Output |
ca. 50 VA |
Supply modul Z19
The measuring device serves for recording oxygen partial pressures in gas atmospheres in connection with an oxygen sensor. Such sensors operate at high temperatures. Therefore, precautions must be taken to keep ignitable gas mixtures from reaching the sensor or the device. In case of the sensor ceramic breaking, sample gases may leak or air may enter the sample gas side. Should this occur, applicable measures must be provided for to save the environment and device parts from damage.
Technical Data Z19
| Measuring range Z19-HU, Z19-FU |
Section 1. 0-21% 0²
Section 2. 0-1000 ppm |
Measuring range
|
EMF 0-1500 mV
|
Ambient temperature |
0 to 45 degrees Celsius |
Measuring precision* |
+/- 1,5 % |
Measuring accuracy |
+ 0,5 mV of the sensor e.m.f. at least - 0.5 ppm
|
|
Dimensions |
ca. 40 x 130 x 120 mm (HxWxD) |
|
Weight |
ca. 0.5 kg |
|
Supply voltage |
24 VDC (22,6 bis 26,4 Volt)
|
|
Power |
Acc. to sensor type, ca. 100 VA max.
|
|
Analog output |
4 – 20 mA floating (0-20mA optional) |
|
Relay output
|
for collective alarm, 1A, |
|
*Precision was measured with connected sensor A19 according DIN 55350. | |
